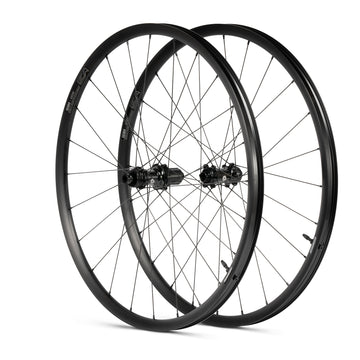

GEON Wheelset
Race-ready with aluminium: The GEON.
With straight pull hubs, asymmetric rims made with a super light-weight aluminum alloy and just 24 spokes, GEON is a state of the art wheelset.
Choosing a ratchet drive system over the traditional pawl and spring system brings maximum reliability. Combined with the light-weight rims and straight pull spokes, it makes for a very direct power transfer, essential in every corner of the race.
ETRTO SIZE
23-584 / 23-622
RIMS
Alloy, Asymmetric rim design with 23mm internal width, tubeless ready, hooked clincher, sleeved joint
RIM HEIGHT
25 mm
FRONT HUB
12 x 100 mm, TPI Bearings, 24H, Straight Pull
REAR HUB
12 x 142 mm, TPI bearings, 24H, Straight Pull, Disc Drive
SPOKES
Pillar PSRTB2016 Triple Butted Spokes, 2x lacing F/R
NIPPLES
Pillar DSN 14G
FREEHUB BODY
HG (XDR, Microspline separately available)
BRAKE TYPE
Disc only
EXTRA INFO
Super light Gravel / Allroad Wheelset with Ratchet Disc engagement system
Max. System Weight: 110 kg
INCLUDED
Pre-installed tubeless tape, aluminum tubeless valves
WEIGHT
650B: 1524 g (HG, 12mm TA, w/ tubeless tape)
700C: 1613 g (HG, 12mm TA, w/ tubeless tape)
