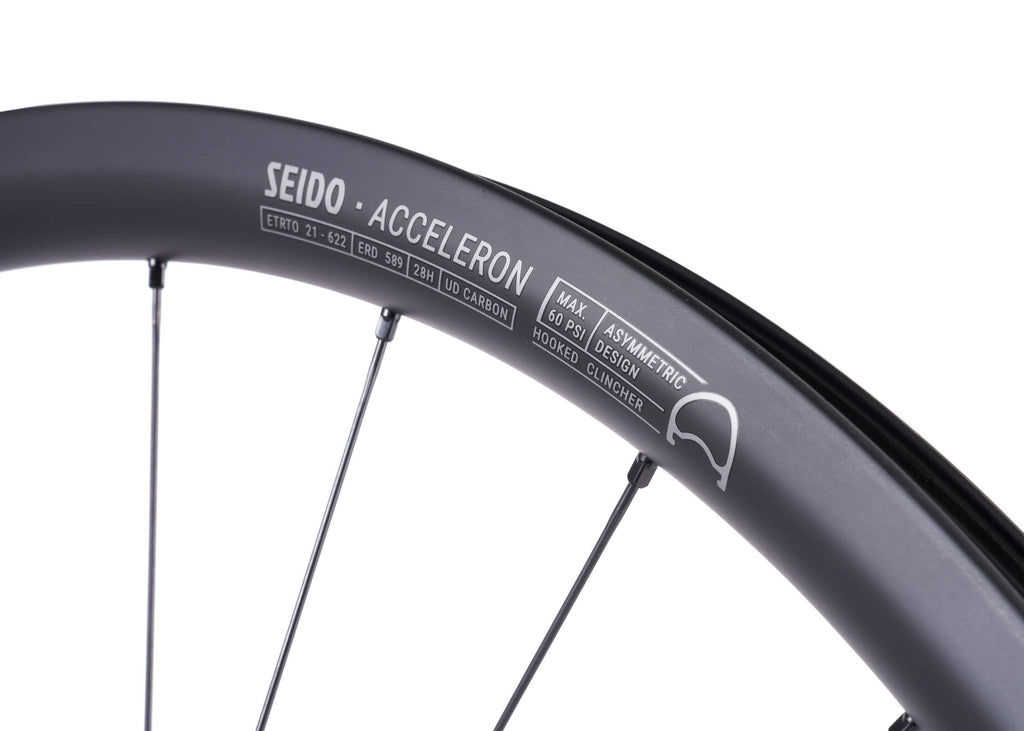

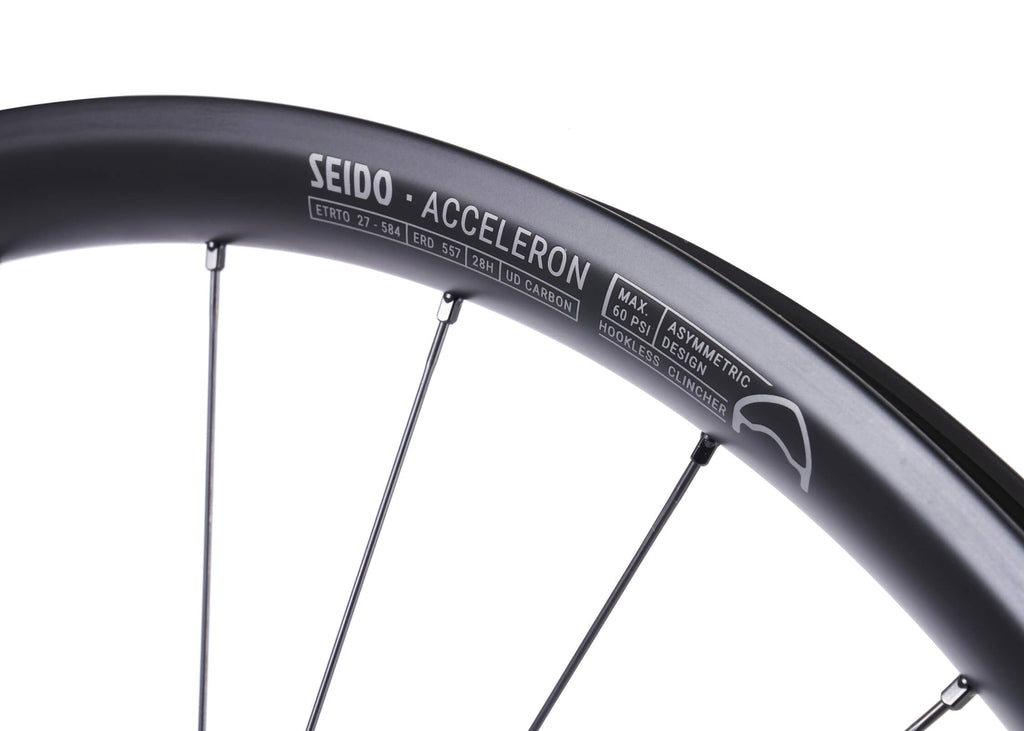

ACCELERON Carbon Wheelset

Marking the top of our wheelset range, the ACCELERON carbon wheelset is there to perform. With asymmetric carbon rims, it provides quick acceleration that is perfectly matched with just a 3.5° engagement gap on the rear hub. A blend of modern and traditional features, the ACCELERON is a carbon wheelset designed to bridge the gap between high performance and reliability. Triple butted J-bend spokes built into a 2x pattern make for an easily serviceable configuration, supported by bearings made by the world renowned TPI for smooth and dependable rolling wherever the trail may take you. Designed with the Ultra Distance racer as the brief, the ACCELERON carbon wheelset has the speed and confidence to maintain its position, no matter how remote the route is.


ETRTO SIZE
27-584 / 21-622

RIMS
Asymmetric carbon fiber rims, tubeless ready
584 with 27 mm internal width
622 with 21 mm internal width

RIM HEIGHT
25 mm (584) / 28 mm (622)

FRONT HUB
12 x 100 mm, TPI bearings, centerlock

REAR HUB
12 x 142 mm, TPI bearings, 102T, centerlock

POE
102 (3.5°)

SPOKES
Pillar PSRTB2016 triple butted spokes, 2x lacing F/R

NIPPLES
Pillar DSN 14G

FREEHUB BODY
HG (XDR, Microspline separate available)
Add to shopping cart with wheelset for 50% upgrade discount.

BEAD TYPE
Tubeless hookless (584) / Tubeless with hooks (622)

BRAKE TYPE
Disc only

RECOMMENDED TIRE WIDTH
40 - 60 mm (584) / 28 - 45 mm (622)

MAXIMUM SYSTEM WEIGHT
100 kg

EXTRA INFO
Lightweight carbon rim wheelset for road and gravel racing with 102T engagement system.

INCLUDED
Pre-installed tubeless tape, aluminum tubeless valves

WEIGHT
1428 g (584, w/ tubeless tape and HG freehub body)
1532 g (622, w/ tubeless tape and HG freehub body)

WHEELBUILD INFO

NIPPLE SEAT DIAMETER
557 mm (584) / 589 mm (622)
Nipple seat diameter is the ERD excluding the nipple height inside the rim. For standard nipples add 3 mm to get ERD.

SPOKE HOLE OFFSET
3 mm

SPOKE LENGTH FRONT WHEEL
275 mm, 275 mm (584) / 291 mm, 291 mm (622)

SPOKE LENGTH REAR WHEEL
275 mm, 273 mm (584) / 291 mm, 289 mm (622)

FRONT HUB PCD
51 mm / 53 mm

REAR HUB PCD
58 mm / 64 mm

FRONT HUB FLANGE DISTANCE / OFFSET
56.25 mm center to center / 6.4 mm

REAR HUB FLANGE DISTANCE / OFFSET
50.7 mm center to center / 8.8 mm

FRONT C-L / C-R
21.7 mm / 34.5 mm

REAR C-L / C-R
34.2 / 16.6 mm

MAX SPOKE TENSION RIM
110 - 130 kgf

FREEHUB BODY HG
SD-CB-003

FREEHUB BODY XDR
SD-CB-010

FREEHUB BODY MICROSPLINE
SD-CB-011
