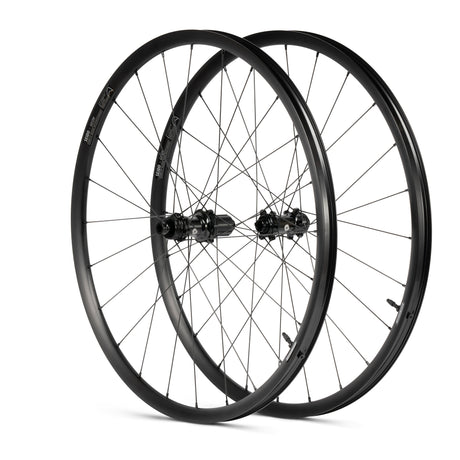

GEON Wheelset

Race-ready with aluminium: The GEON.
With straight pull hubs, asymmetric rims made of a super light-weight aluminium alloy and just 24 spokes, the GEON is a state of the art wheelset.
Choosing a ratchet drive system over the traditional pawl and spring system brings maximum reliability. Combined with the light-weight rims and straight pull spokes it makes for a very direct power transfer as you would need it in every corner of a race.

ETRTO SIZE
23-584 / 23-622

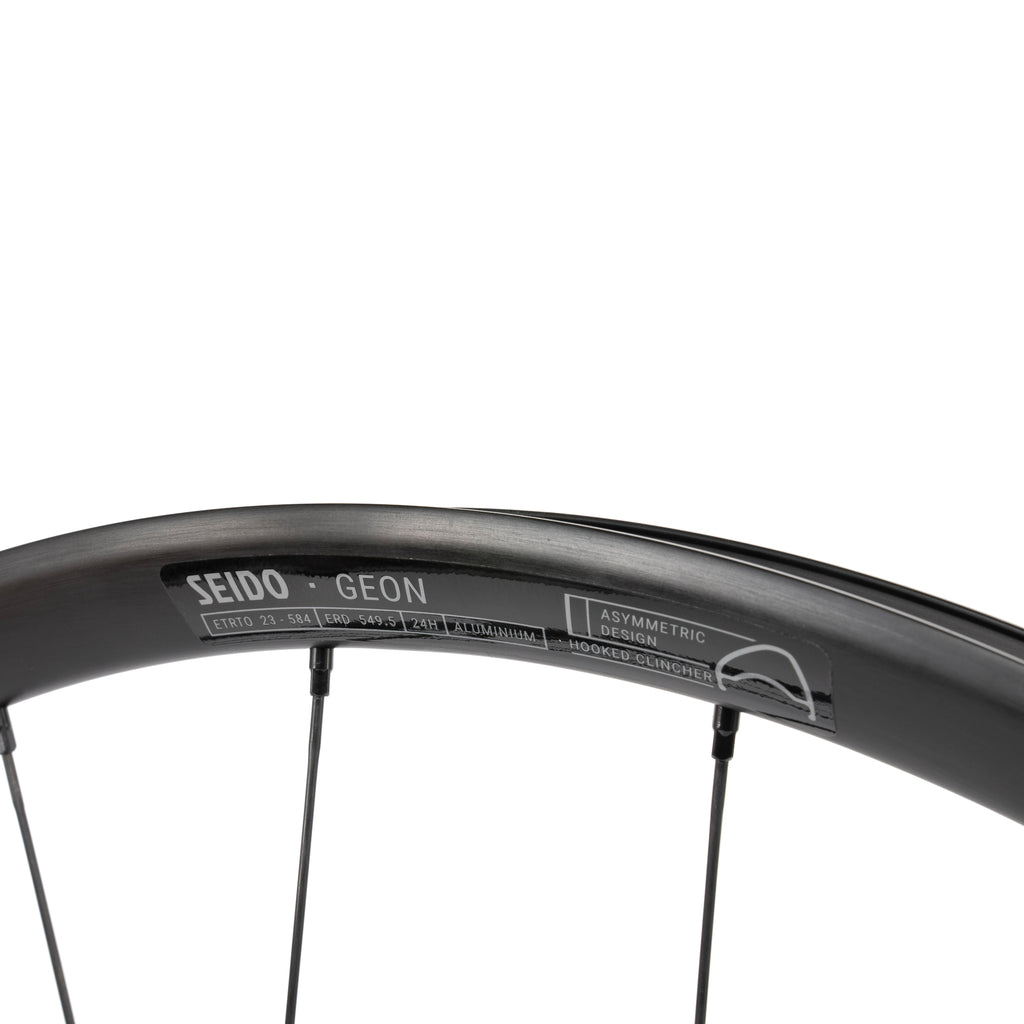

RIMS

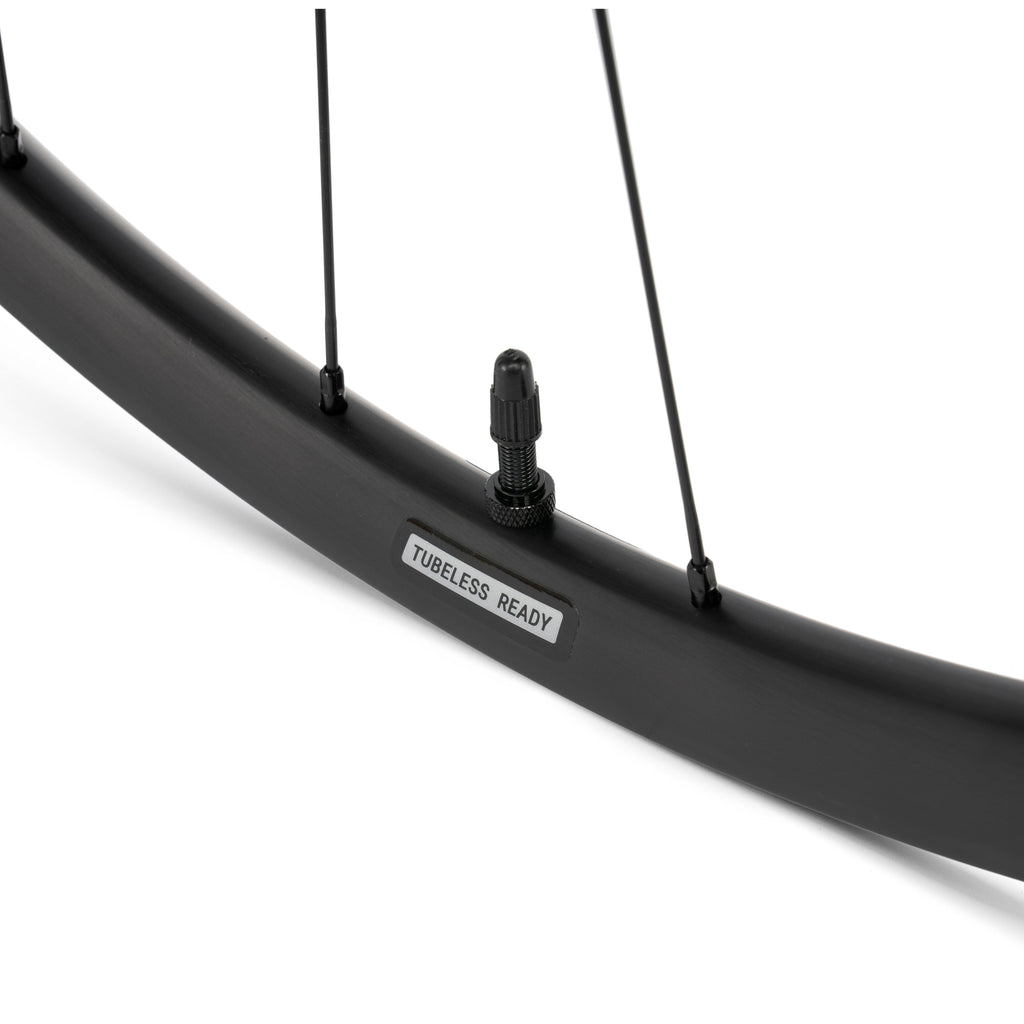

Aluminium, asymmetric rim design with 23 mm internal width, tubeless ready, hooked clincher, sleeved joint

RIM HEIGHT
25 mm

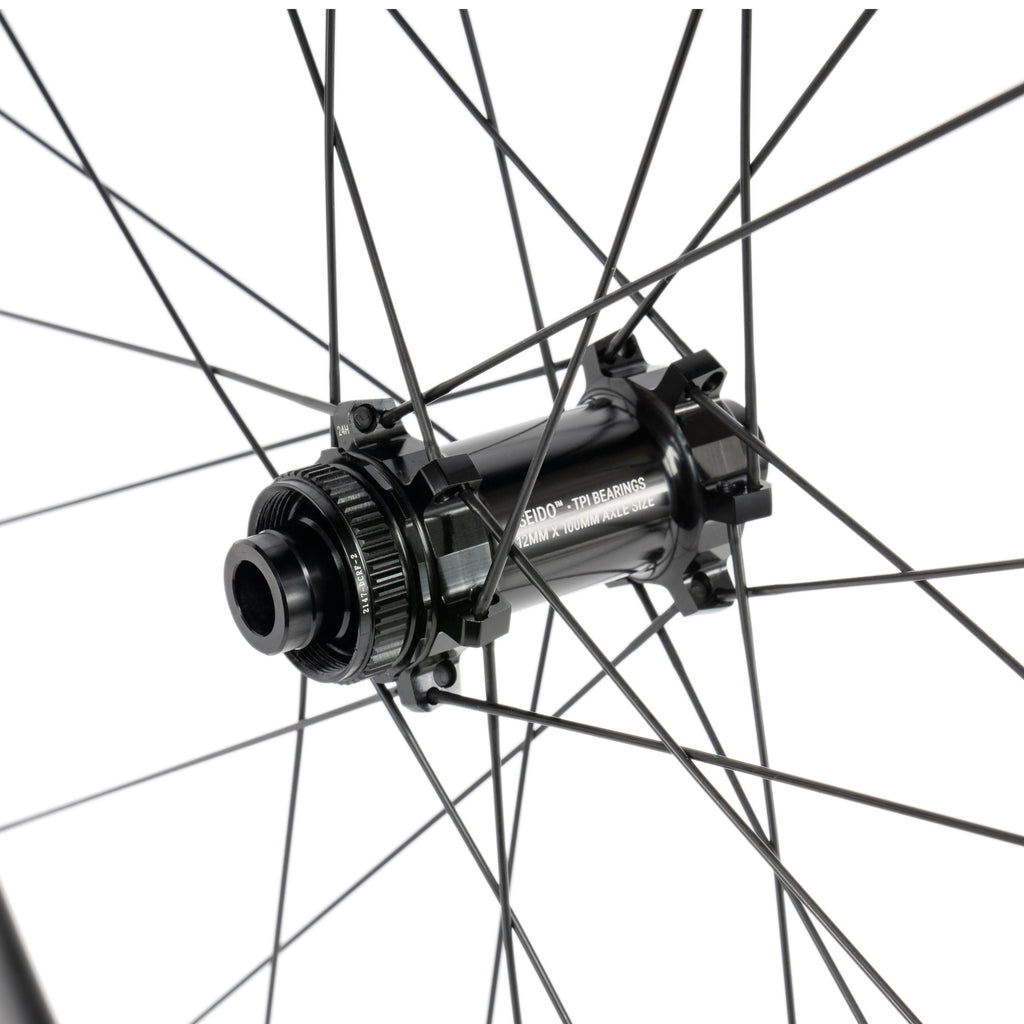

FRONT HUB
12 x 100 mm, TPI bearings, straight pull, centerlock

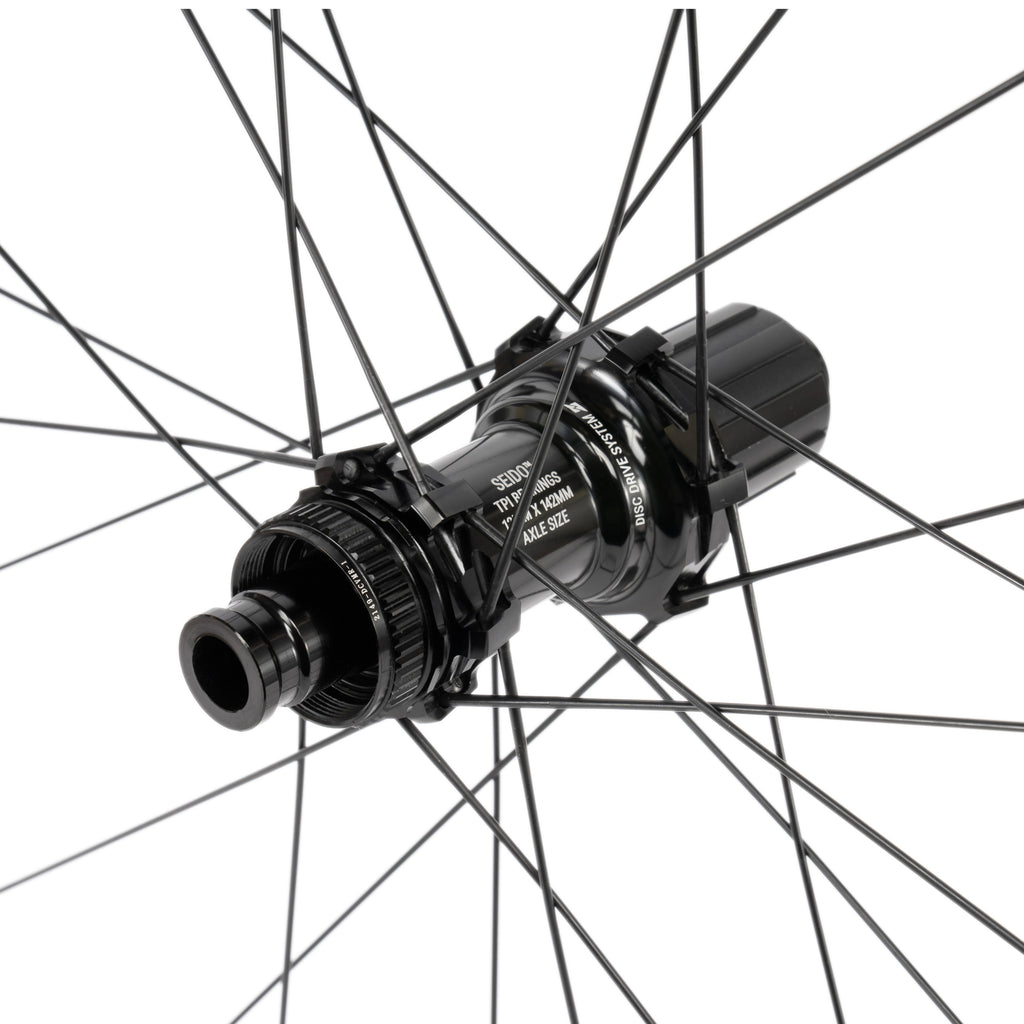

REAR HUB
12 x 142 mm, TPI bearings, straight pull, ratchet disc, centerlock

POE
54 (6.7°)

SPOKES
Pillar PSRTB2016 triple butted spokes, 2x lacing F/R

SPOKE COUNT (FRONT / REAR)
24H / 24H

NIPPLES
Pillar DSN 14G

FREEHUB BODY
HG, (XDR, Microspline separate available)
Add to shopping cart with wheelset for 50% upgrade discount.

BEAD TYPE
Tubeless with hooks

BRAKE TYPE
Disc only

RECOMMENDED TIRE WIDTH
28 - 45 mm

MAXIMUM SYSTEM WEIGHT
100 kg

EXTRA INFO
Super light gravel / allroad wheelset with 54T ratchet disc engagement system.

INCLUDED
Pre-installed tubeless tape, aluminum tubeless valves

WEIGHT
1533 g (584, w/ tubeless tape and HG freehub body)
1589 g (622, w/ tubeless tape and HG freehub body)

WHEELBUILD INFO

NIPPLE SEAT DIAMETER
551 mm (584) / 585 mm (622)
Nipple seat diameter is the ERD excluding the nipple height inside the rim. For standard nipples add 3 mm to get ERD.

SPOKE HOLE OFFSET
3 mm

FRONT HUB PCD
46 mm trailing / 42.5 mm leadind /  0 mm tangential spoke offset

REAR HUB PCD
40 mm NDS / 50 mm trailing DS / 52 mm leadind DS / 0 mm tangential spoke offset

FRONT HUB FLANGE DISTANCE / OFFSET
54.8 mm center to center / 5 mm

REAR HUB FLANGE DISTANCE / OFFSET
50 mm center to center / 8.2 mm

FRONT C-L / C-R
22.4 mm/ 32.4 mm

REAR C-L / C-R
33.2 mm / 16.8 mm

MAX SPOKE TENSION RIM
110 - 130 kgf

FREEHUB BODY HG
SD-CB-002

FREEHUB BODY XDR
SD-CB-005

FREEHUB BODY MICROSPLINE
SD-CB-008
