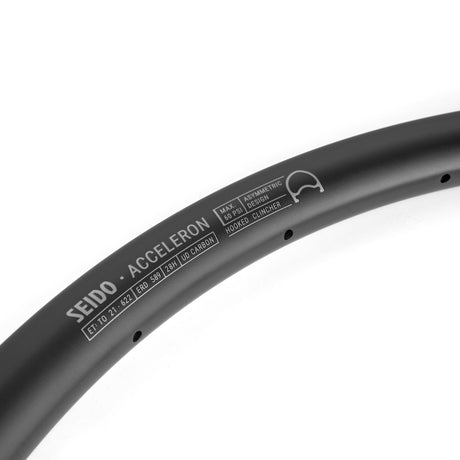

ACCELERON Carbon Rim

Super light carbon rim for road and gravel racing

ETRTO SIZE
27-584 / 21-622

RIM HEIGHT
25 mm (584) / 28 mm (622)

RIM WIDTH
27 mm (584) / 21 mm (622)

SPOKE COUNT
28H

BEAD TYPE
Tubeless ready hookless (584) / Tubeless ready with hooks (622)

BRAKE TYPE
disc only

RECOMMENDED TIRE WIDTH
40 - 60 mm (27 mm width) / 28 - 45 mm (21 mm width)

MAXIMUM SYSTEM WEIGHT
100 kg

EXTRA INFO
Asymmetric carbon fiber rim

WEIGHT
310 (584) / 365 (622)

NIPPLE SEAT DIAMETER
552 mm (584) / 584 mm (622)
Nipple seat diameter is the ERD excluding the nipple height inside the rim. For standard nipples add 3 mm to get ERD.

SPOKE HOLE OFFSET
3 mm

MAX SPOKE TENSION RIM
110 - 130 kgf
