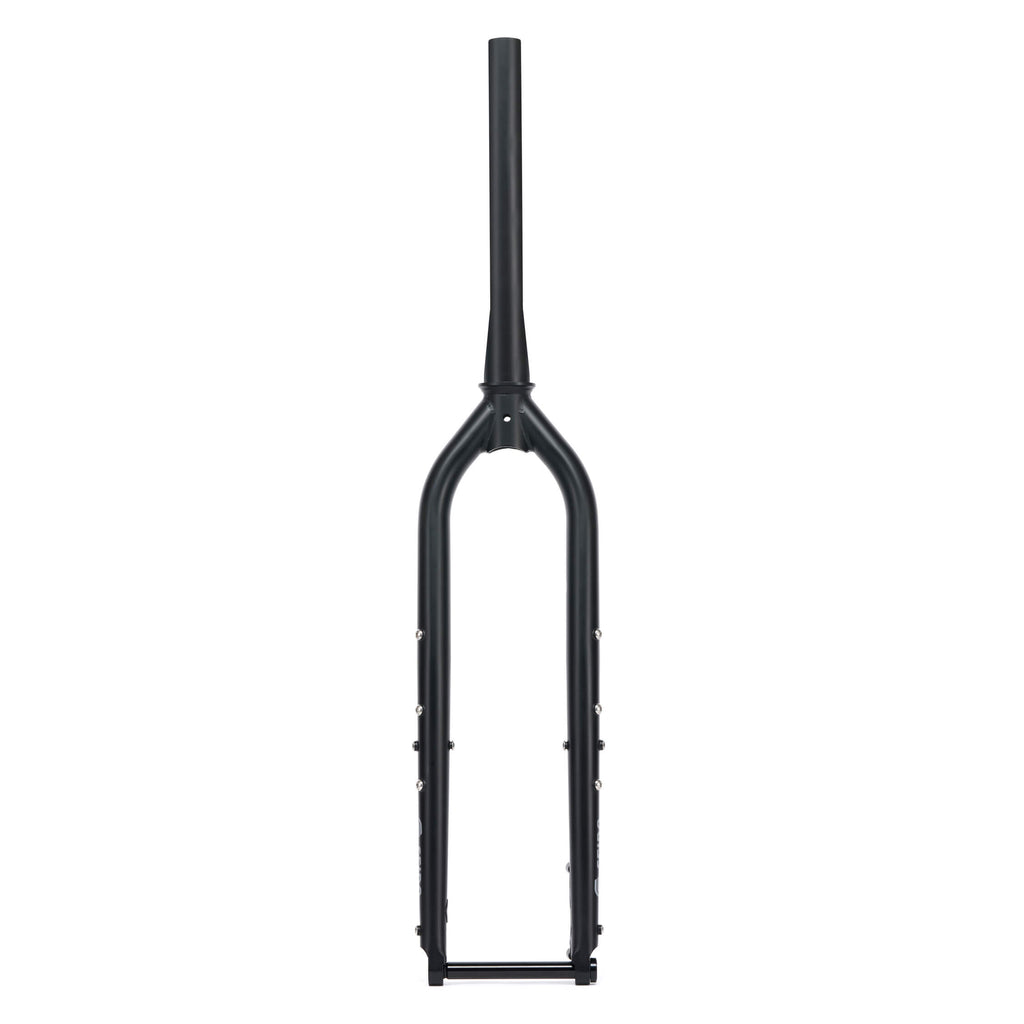

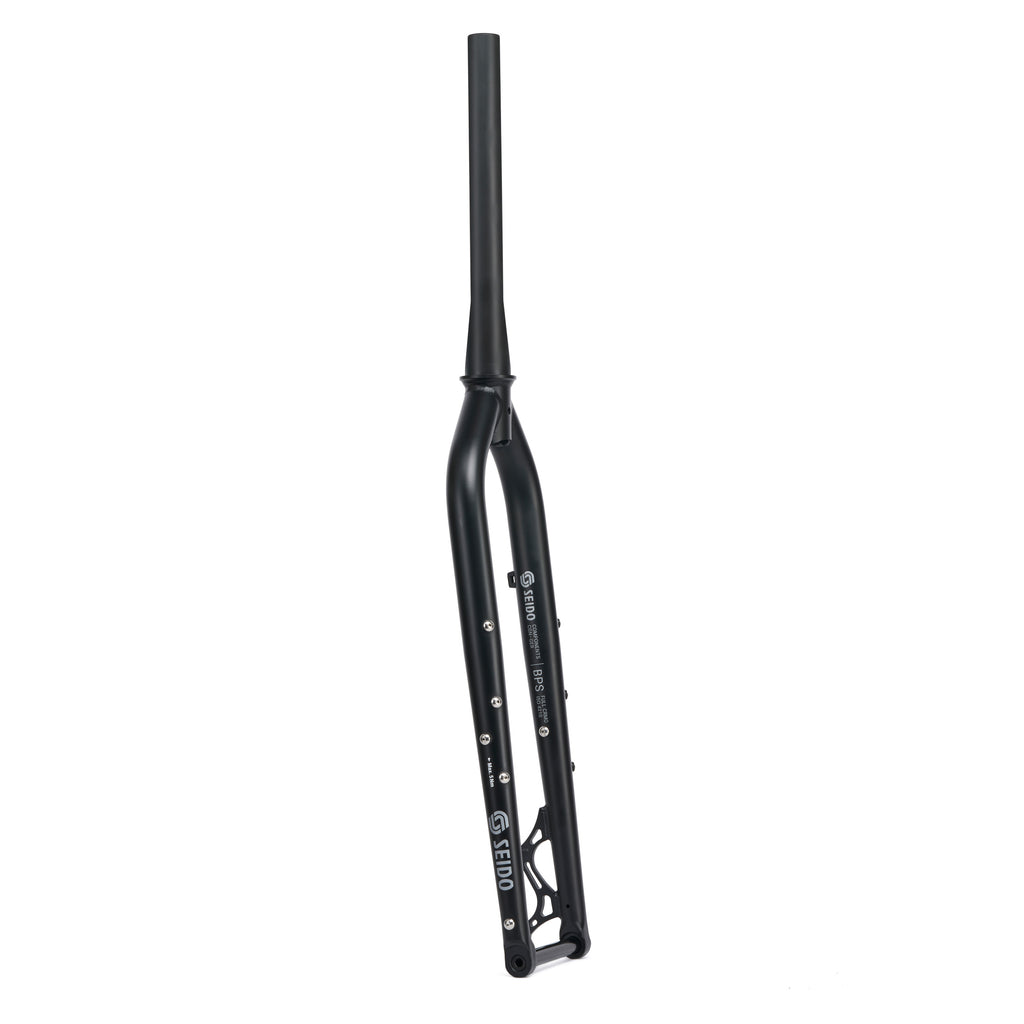

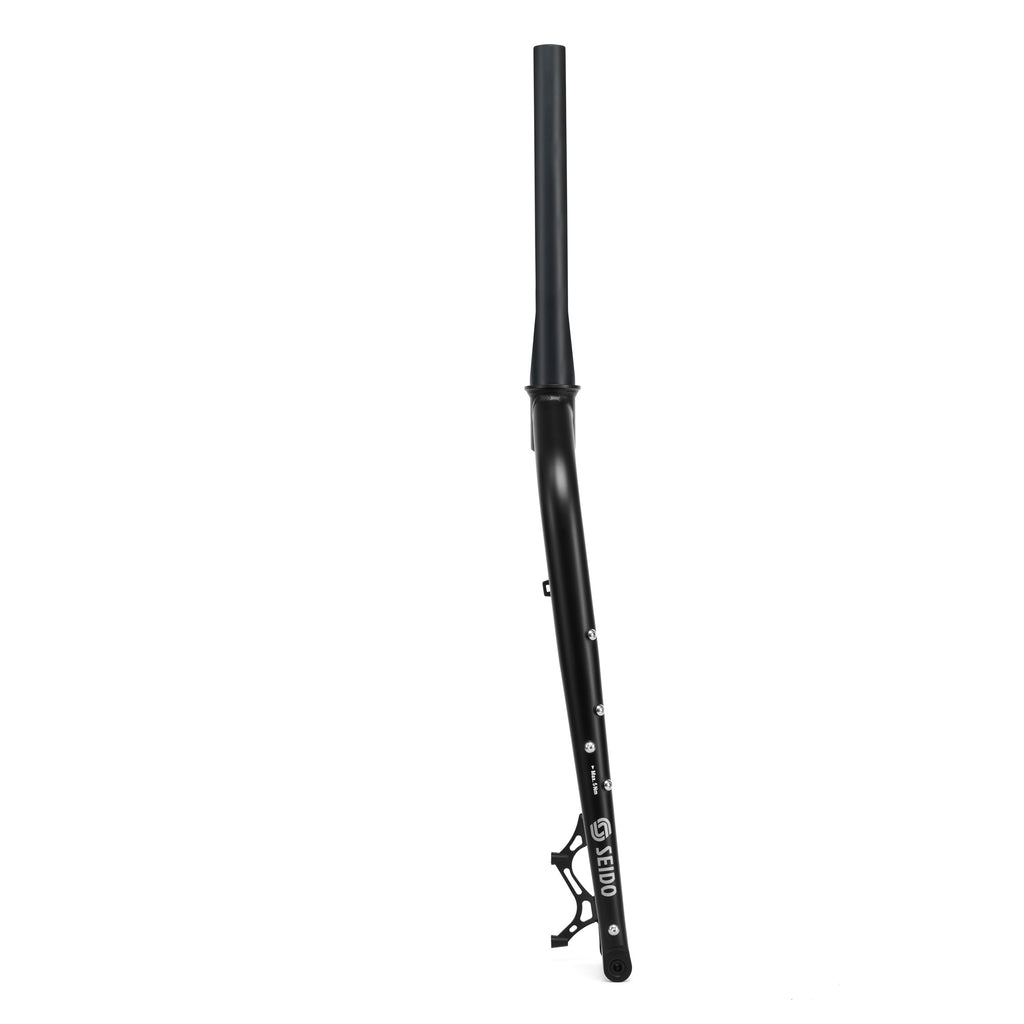

BPS Fork
Built to withstand the most unforgiving conditions, our BPS (Bike Packing Steel) fork is made from proven Cr-Mo steel and fitted with all the mounts required to kit out your front-end with lights, racks and cages. Designed to replace suspension forks on world-exploring MTBs, it can fit a huge variety of bikes intended to accommodate 120 - 140 mm suspension forks. BPS is there for the serious expedition, where there is no room compromise functionality.
COLOR
Black
MATERIAL
Cr-Mo steel
STEERER
Tapered, 1-1/8"" - 1-1/2"", 300 mm length
S.H.I.S. DIMENSIONS
28.6 | 40
OFFSET
51 mm
AXLE TO CROWN
500 mm
HUB SPACING
110 mm

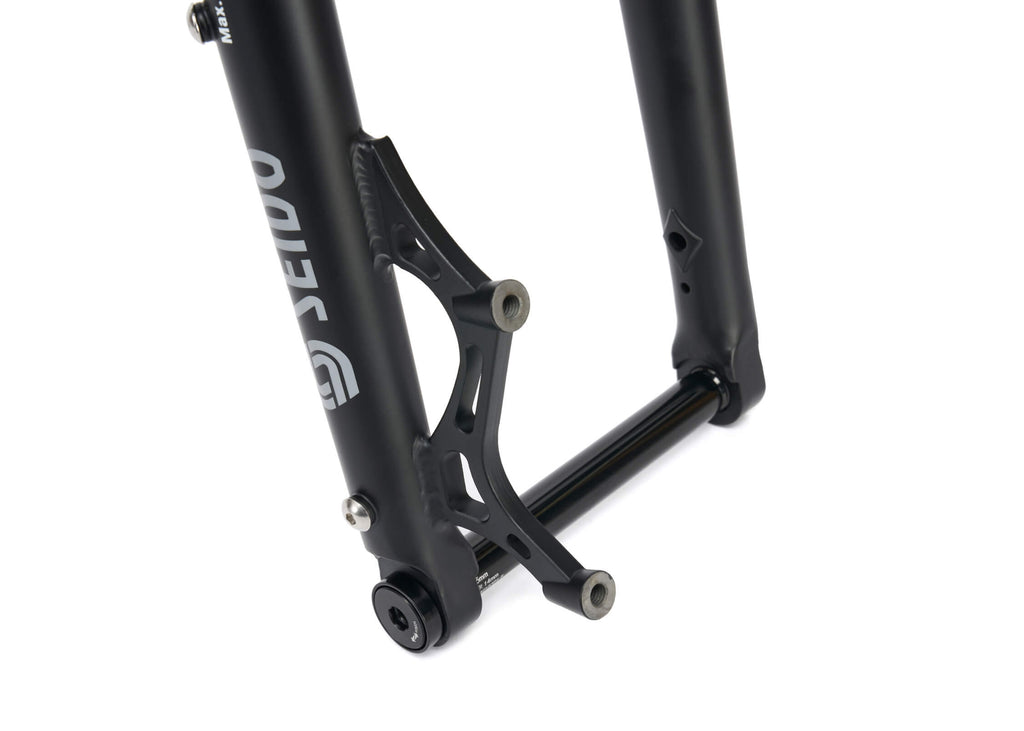

BRAKE
Post Mount 6"", max. 203 mm rotor size
INTERNAL ROUTING
Dynamo cable
MOUNTS
Triple cage / head light / mudguards / lowrider rack

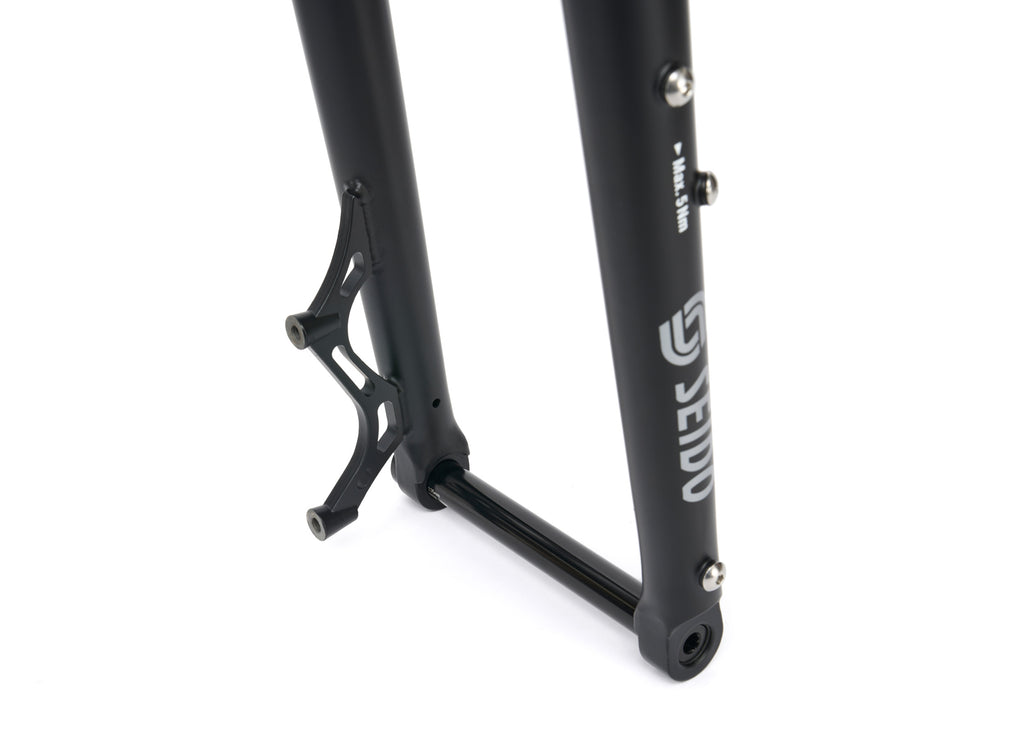

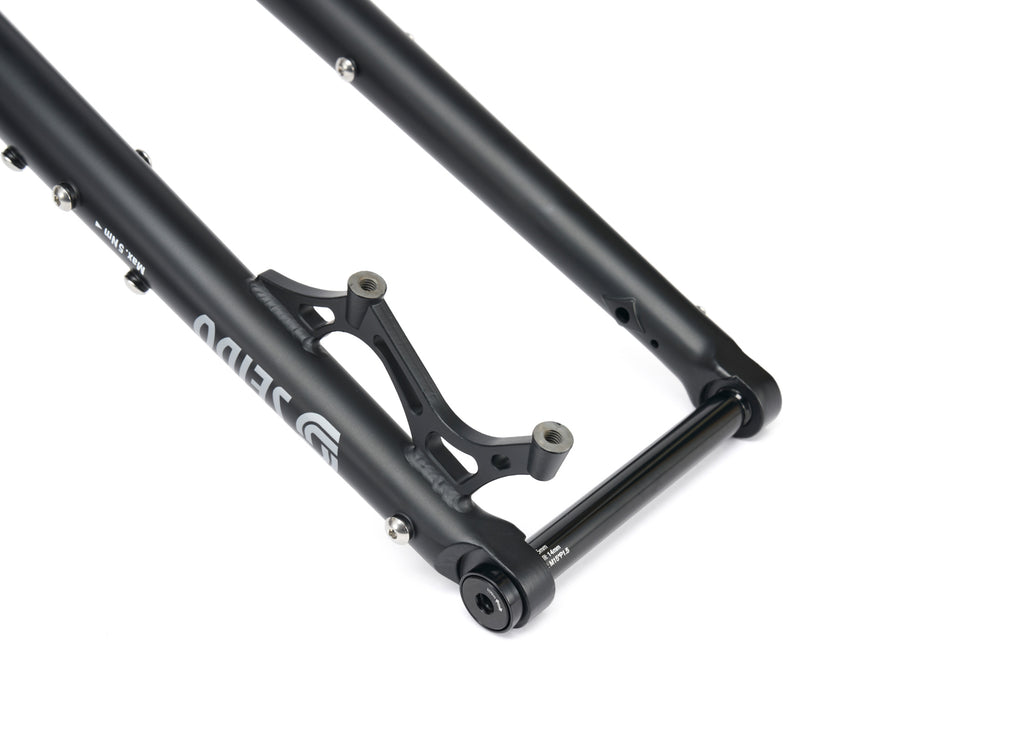

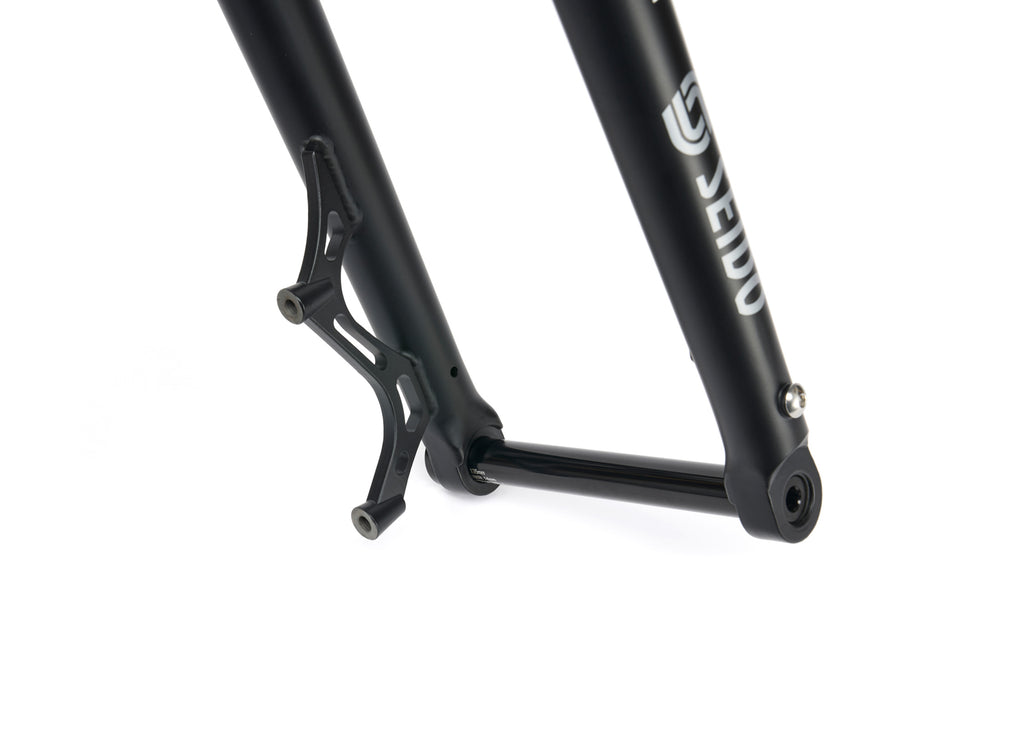

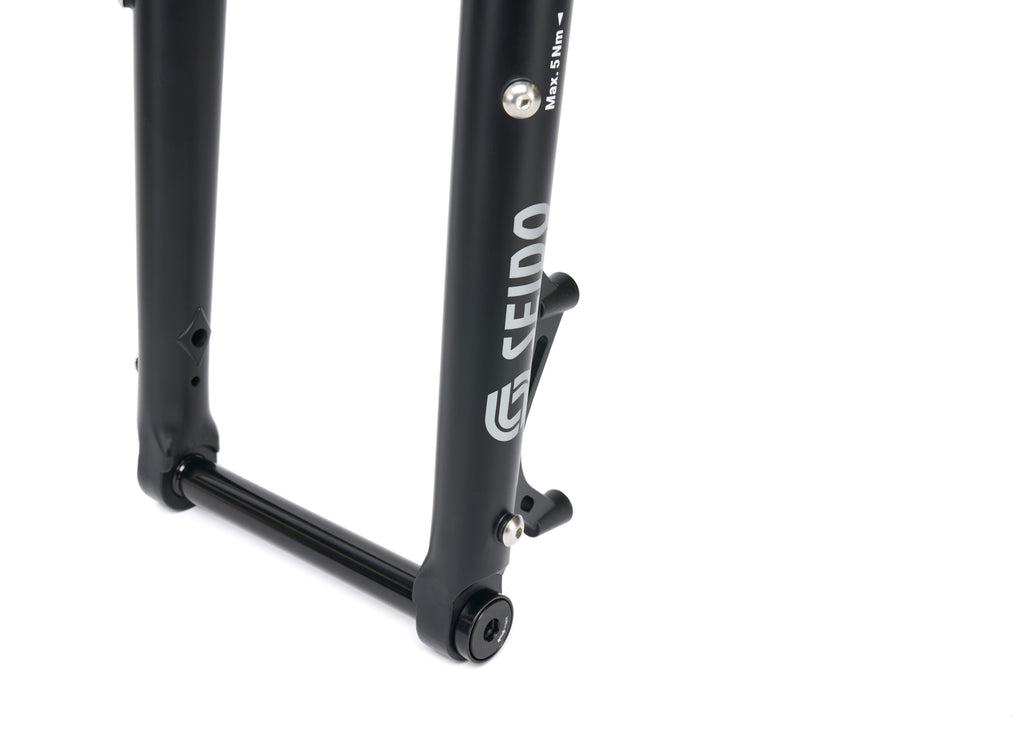

INCLUDED
Through axle, star nut, cable port plugs
WEIGHT
1694 g (incl. through axle, 10 mounting bolts, uncut steerer)
TIRE CLEARANCE
27.5"" x 3.0"" / 29"" x 3.0""
MAXIMUM SYSTEM WEIGHT
175 kg
EXTRA INFO
Lowrider compatible, hub dynamo cable routing

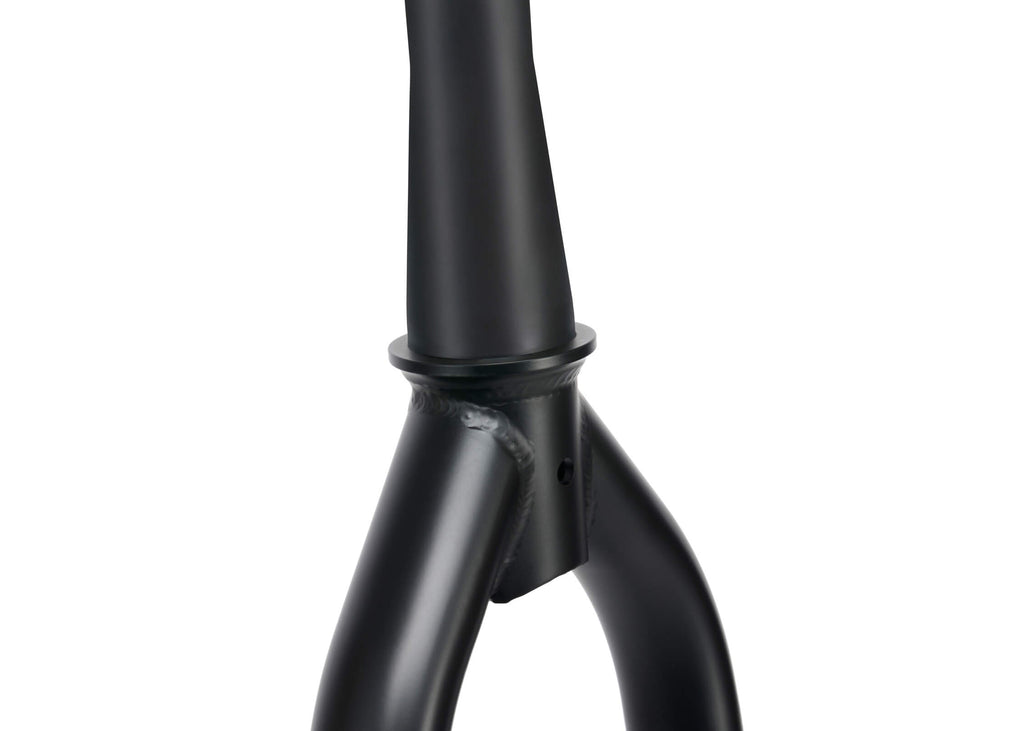

CROWN DIAMETER
57 mm
ASTM RIDING CONDITION
3
HUB TYPE
15 x 110 mm
TA TOTAL LENGTH (CLOSED)
135 mm
TA DIAMETER
15 mm
TA THREADING DIAMETER X PITCH
M15 x 1.5
MIN. THREAD LENGTH
14 mm
MAX. DIAMETER HUB ENDCAPS
21 mm
